一次性配件

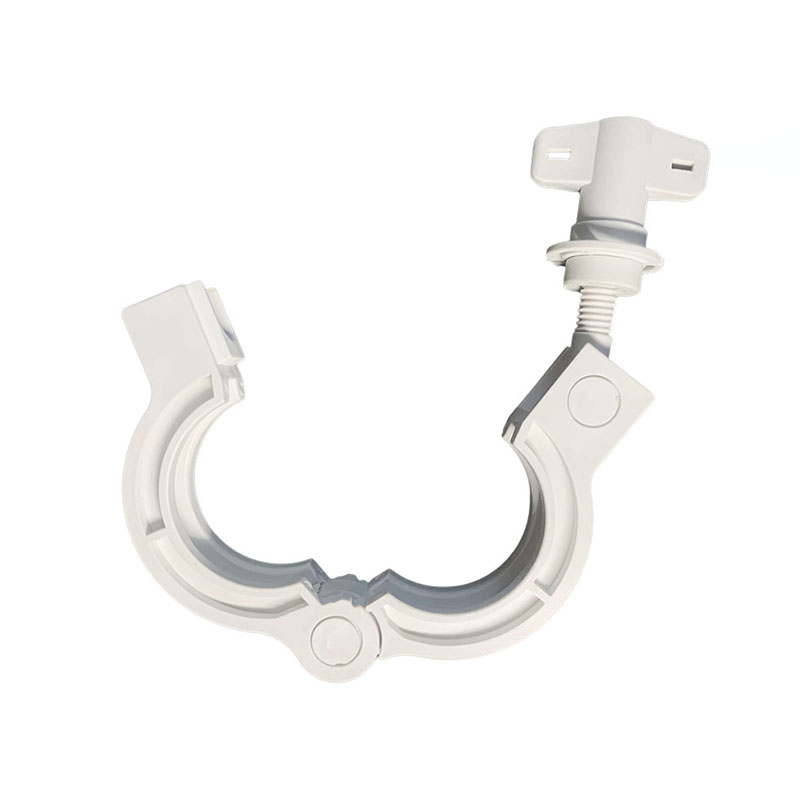

生物制药专用塑料卡箍 CJFLEXBIO TCCP
生物制药工艺中最适合的塑料卡箍,主要适用于SUS系统(一次性生物反应系统)及生物制药行业。所用材料符合USP CLASS VI标准,可以安心在生物制药系统中使用
产品特点:
1.可进行辐照灭菌,完美替代金属卡箍,解决行业难题
2.质量轻,安装方便
3.与ASME-BPE和BPSA标准非金属和KF法兰兼容
4. USP CLASS VI材料,符合生物要求
5.设计精巧,防滑,高温下不易松脱
6.材料耐腐蚀
灭菌方式:
辐照灭菌(25-40kGy)
蒸汽灭菌(134℃不超过5分钟)
环氧乙烷灭菌
电子束灭菌
Most suitable plastic clamp in biopharmaceutical process, mainly for SUS system (disposable bioreaction system) and biopharmaceutical industry. The material meets the USP class VI criteria and is safe for use in biopharmaceutical systems.
Features:
1. Irradiation sterilization is available and is a perfect alternative to metal clamps to solve difficulties in industry
2. Light weight and easy to install
3. Compatible with ASME-BPE and BPSA standard non-metallic KF flanges.
4. USP Class VI Tested Nylon Material, complies with biological requirements
5. Designed to be delicate, non slip, and not easy to break at high temperatures
6. Corrosion resistance materials
Sterilization Methods:
Sterilize by gamma irradiation (25-40 kGy)
Steam sterilize (134 ℃ for not more than 5 minutes)
Ethylene oxide sterilization
Electron beam sterilization
产品货号 | 尺寸 | 适配卡盘外径 | 最大工作压力 |
TCCP-25 | 1/2-3/4” | 25.2mm | 150PSI |
TCCP-50 | 1-1.5” | 50.5mm | 150PSI |
TCCP-64 | 2” | 64mm | 150PSI |
