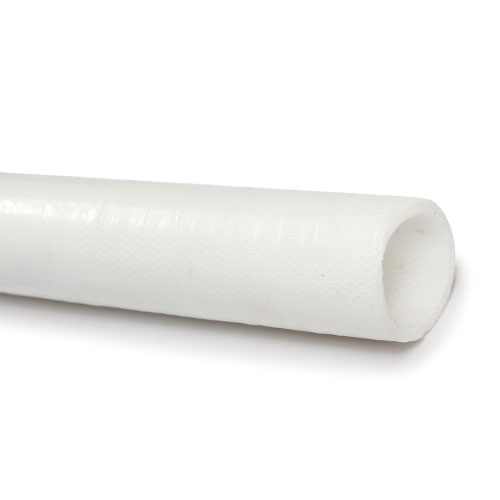

铂金硫化双层硅胶管 PDF
应用:食品、饮料、饮用水、化妆品、制药等高洁净行业
结构:铂金硫化硅胶管,内置双层网状聚酯纤维增强
温度范围:-60ºC至200ºC
颜色:标准为白色,可定制其他颜色
应用场合:中高压下输送液体,可进行CIP及SIP清洗
符合认证:FDA, USP, BFR, USDA, ISO 10993
长度:标准最长长度为20米,如需更长长度,请来电咨询。
Construction: Type PDF is manufactured from High purity platinum cured Silicone with double polyester fiber reinforcement.
Temp. Range: -60°C and 200°C.
Colour: White (Coloured covers available)
Applications: For transporting liquids at high pressure. Suitable for CIP and SIP cleaning.
Certification: FDA, USP, BFR, USDA, ISO 10993
Length: Standard maximum length is 20 meters, for a longer length, please contact us.
** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.
编码 | 内径 | 外径 | 弯曲半径 | 工作压力 | 爆破压力 | 真空度 | |
in. | mm | mm | mm | bar | bar | bar | |
PDF005 | 3/16" | 4.8 | 15 | 27 | 25 | 75 | 0.91 |
PDF006 | 1/4" | 6.4 | 16 | 30 | 24 | 72 | 0.91 |
PDF008 | 5/16" | 7.9 | 18 | 37 | 23 | 69 | 0.91 |
PDF010 | 3/8" | 9.5 | 20 | 45 | 22.5 | 67.5 | 0.85 |
PDF013 | 1/2" | 12.7 | 22 | 51 | 20 | 60 | 0.83 |
PDF016 | 5/8" | 15.9 | 27.8 | 62 | 18 | 54 | 0.81 |
PDF019 | 3/4" | 19 | 31 | 76 | 16.5 | 49.5 | 0.72 |
PDF022 | 7/8" | 22 | 33.5 | 100 | 14 | 42 | 0.45 |
PDF025 | 1" | 25.4 | 37 | 118 | 12.5 | 37.5 | 0.35 |
